Autonics TC3YF Freezing Controller — Cold Chain Control

Key Features and Performance

Autonics TC3YF is engineered specifically for refrigeration and freezing applications — not a general-purpose controller adapted for cold use. The dedicated compressor output includes anti-short-cycle protection that prevents rapid compressor restarts, extending compressor motor life and reducing maintenance costs in Malaysian cold storage operations running 24/7.

NTC thermistor and RTD sensor inputs provide accurate temperature measurement across the full -40 to 99.9°C operating range. NTC sensors offer cost-effective accuracy for standard cold room monitoring, while RTD inputs deliver higher precision for pharmaceutical cold chain applications where temperature documentation meets regulatory requirements.

Automatic defrost scheduling eliminates the manual defrost cycles that disrupt cold chain continuity. The TC3YF initiates defrost based on configurable time intervals or accumulated compressor run time, then manages the defrost heating period and post-defrost recovery. Fan output control coordinates evaporator fan operation during defrost to prevent warm air circulation into the stored product zone.

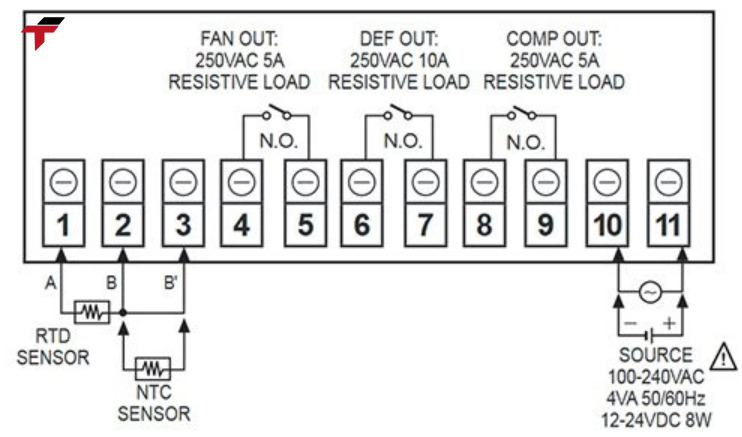

Three dedicated outputs — compressor, defrost heater, and evaporator fan — operate through independent relay contacts rated for direct contactor switching. This eliminates intermediate relay boards in smaller installations, reducing panel complexity and wiring costs.

The DIN 72x36mm front panel fits standard refrigeration control panel cutouts, enabling direct replacement of existing controllers without panel rework. Large LED display provides clear temperature reading even in the low-light environments typical of Malaysian cold rooms and freezer facilities.

High and low temperature alarms protect stored products from temperature excursions, with configurable alarm delay to prevent nuisance alarms during defrost cycles and door openings.

Technical Specifications

Applications in Malaysian Industry

Autonics TC3YF freezing controller serves the expanding cold chain infrastructure across Malaysia. Seafood processing facilities in Sabah and Sarawak use TC3YF for blast freezer control where -40°C operation preserves export-grade product quality. Cold storage warehouses in Port Klang manage dozens of TC3YF controllers across temperature zones ranging from chilled (+2°C) to deep frozen (-30°C).

Halal food processing plants throughout Malaysia deploy TC3YF for freezer and cold room management, maintaining the temperature documentation required for halal certification compliance. Pharmaceutical distributors in Selangor use TC3YF with RTD sensors for vaccine and medicine cold chain monitoring. Malaysia’s growing food export sector under NIMP 2030 drives increased demand for reliable, automated cold chain control.

Autonics TC3YF vs Alternatives

Autonics TC3YF provides dedicated refrigeration control functions — compressor protection, auto defrost, fan management — that general-purpose PID controllers require external logic to replicate. Compared to European refrigeration controllers from Dixell and Carel, TC3YF offers equivalent functionality with shorter supply lead times and competitive pricing through Autonics’ regional distribution. The DIN 72x36mm form factor ensures retrofit compatibility with existing cold room control panels.

Why Source from Flextech Industrial

Flextech Industrial supplies Autonics TC3YF freezing controllers across Malaysia for cold chain projects and replacement requirements. Our team provides sensor selection guidance, defrost scheduling configuration, and alarm parameter setup for cold room and freezer installations. Get a Quote from Flextech Industrial for TC3YF controller pricing and project quantities.

Frequently Asked Questions

What sensor types does the Autonics TC3YF support?

Autonics TC3YF supports NTC thermistor and RTD (Pt100) sensor inputs. NTC sensors suit standard cold room monitoring with cost-effective accuracy, while RTD sensors provide the higher precision and stability required for pharmaceutical and regulated cold chain applications.

How does automatic defrost work on TC3YF?

TC3YF initiates defrost cycles at configurable time intervals, activating the defrost heater output while managing fan and compressor states. After the defrost period completes, the controller resumes normal cooling with a configurable drip time before fan restart to prevent ice re-formation on evaporator coils.

Can TC3YF protect the compressor from short cycling?

TC3YF includes anti-short-cycle protection that enforces a minimum off-time between compressor starts. This prevents rapid restart damage to compressor motors, extending equipment life in Malaysian cold storage facilities operating under frequent door-opening conditions.

What temperature range does TC3YF cover for cold rooms in Malaysia?

TC3YF covers -40°C to +99.9°C, handling everything from deep freezer applications to heated holding cabinets. Malaysian cold storage operations typically configure TC3YF between -30°C and +5°C for frozen and chilled product storage zones.

Does Flextech Industrial supply TC3YF sensors and accessories in Malaysia?

Flextech Industrial supplies complete TC3YF installation packages including controllers, NTC and RTD temperature probes, and mounting hardware for Malaysian cold chain projects. Request Pricing for bundled controller and sensor packages.
