Mitsubishi FR-F700 Inverter — Legacy VFD for HVAC

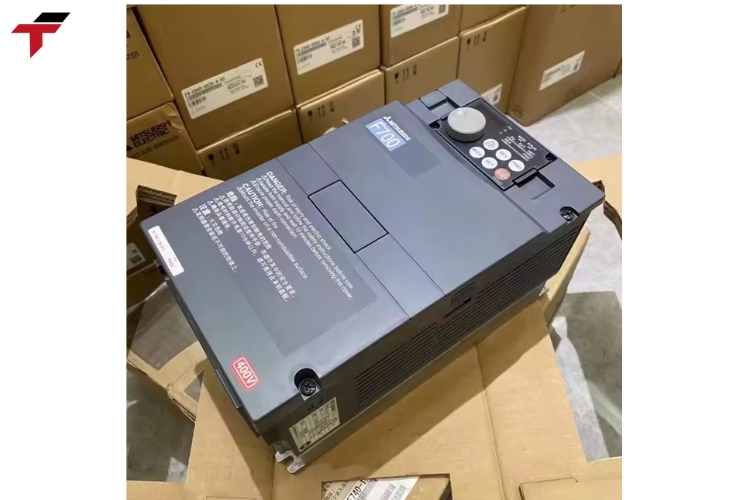

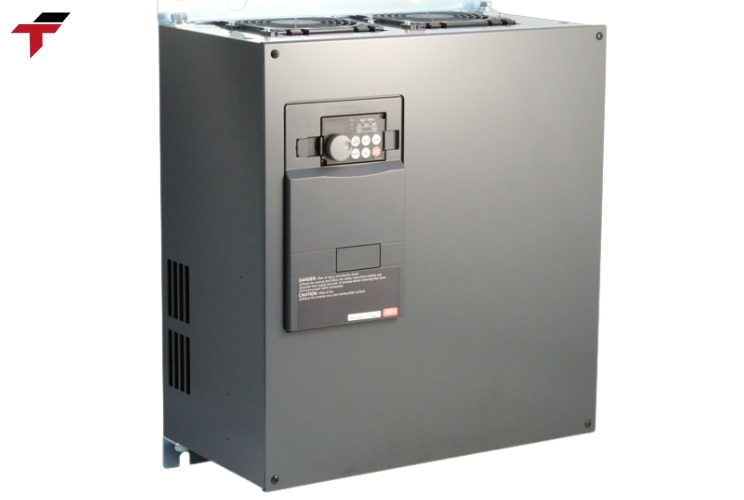

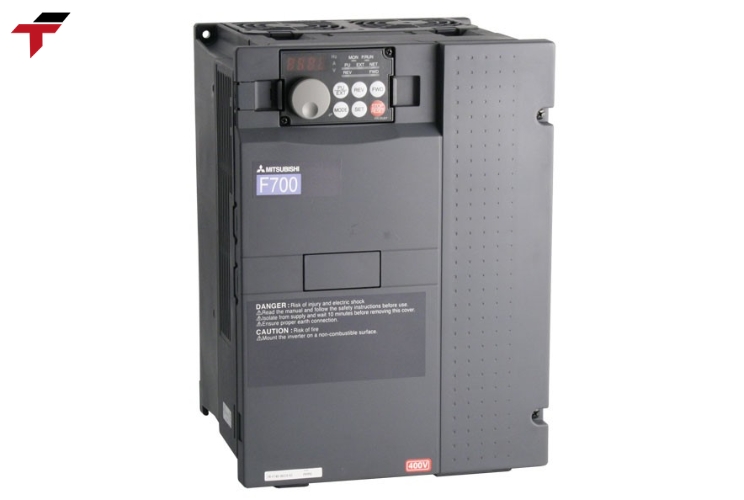

Mitsubishi FR-F700 inverters established the benchmark for energy-efficient pump and fan control when launched in 2004. The FR-F700 series introduced Optimum Excitation Control (OEC) technology to the variable frequency drive market and remains widely installed across HVAC, water treatment, and building automation systems in Malaysia. Flextech Industrial supplies FR-F700 replacement units and supports migration planning to the current FR-F800 series.

Key Features and Performance

Mitsubishi FR-F700 inverters pioneered OEC energy saving for variable torque applications. The OEC algorithm continuously adjusts motor excitation current to minimise iron losses under partial load conditions, achieving measurable energy reductions on centrifugal pumps, supply fans, and exhaust blowers.

The FR-F700 series covers power ratings from 0.75 kW to 630 kW in both 200V and 400V classes. Overload capacity reaches 120% for 60 seconds in normal duty mode, sized appropriately for the gradual load changes typical in HVAC and water pumping systems.

Built-in PID control on the Mitsubishi FR-F700 enables direct process regulation of pressure, flow rate, or temperature without an external controller. The drive accepts 4-20 mA or 0-10V feedback signals from pressure transmitters or flow sensors, closing the control loop internally.

Communication on the FR-F700 uses a built-in RS485 port with an option slot for CC-Link, PROFIBUS-DP, DeviceNet, or LonWorks cards. The LonWorks option made the FR-F700 particularly popular in building management system (BMS) installations throughout Malaysia’s commercial property sector.

The Mitsubishi FR-F700 supports automatic restart after momentary power loss, a critical feature for pump stations and ventilation systems that must resume operation without manual intervention. Motor auto-tuning simplifies commissioning by measuring stator resistance and optimising control parameters automatically.

Technical Specifications

Applications in Malaysian Industry

Mitsubishi FR-F700 inverters remain operational in thousands of installations across Malaysia. Commercial office towers in Kuala Lumpur and Penang use the FR-F700 for chilled water pump and air handling unit control within centralised HVAC systems.

Water supply authorities in Malaysia deployed FR-F700 drives for booster pump stations during the 2005-2015 infrastructure expansion period. Many of these installations continue to operate reliably. Palm oil mills use the FR-F700 for cooling tower fan speed control, and semiconductor facilities in Penang rely on the drive for cleanroom pressurisation fans. Under NIMP 2030, many Malaysian facility managers are now evaluating FR-F700 to FR-F800 migration to access improved safety features and communication capabilities.

Mitsubishi FR-F700 vs FR-F800 Upgrade Path

Mitsubishi FR-F700 installations can migrate to the FR-F800 series with minimal disruption. The FR-F800 maintains compatible mounting dimensions for most power ratings, and parameter files from FR-F700 drives import into FR Configurator2 software. The FR-F800 adds STO SIL3 safety, Ethernet communication options, and enhanced OEC algorithms that the FR-F700 lacks. For facilities not yet ready to upgrade, Flextech Industrial continues to supply FR-F700 replacement units while stock remains available.

Why Source from Flextech Industrial

Flextech Industrial supports both FR-F700 replacement supply and FR-F800 migration planning in Malaysia. Our engineers assess existing installations, confirm mounting compatibility, and prepare parameter conversion files to minimise changeover downtime. We maintain FR-F700 stock for urgent replacement needs alongside the current FR-F800 range.

[Get a Quote](/contact/) for Mitsubishi FR-F700 replacement units or FR-F800 upgrade planning.

Frequently Asked Questions

Is the Mitsubishi FR-F700 still available for purchase?

Mitsubishi FR-F700 inverters are available as replacement stock while supplies last. The FR-F700 has been superseded by the FR-F800 series for new installations. Flextech Industrial carries FR-F700 units in Malaysia for like-for-like replacement in existing systems.

Can I replace an FR-F700 with an FR-F800 directly?

Mitsubishi FR-F800 inverters share compatible footprints with FR-F700 models for most power ratings. Terminal assignments are largely identical, and parameter settings transfer through FR Configurator2 software. Minor wiring adjustments may be needed for safety circuit integration.

What is the typical lifespan of a Mitsubishi FR-F700 inverter?

Mitsubishi FR-F700 inverters typically deliver 10 to 15 years of service with proper maintenance. Capacitor replacement at the 7- to 10-year interval extends operational life. Fan replacement is the most common maintenance item and should be performed when cooling airflow degrades.

Are spare parts still available for the FR-F700 in Malaysia?

Flextech Industrial stocks common FR-F700 spare parts including cooling fans, control PCBs, and keypads in Malaysia. Capacitor reform kits are available for drives that have been in storage. Contact our parts team to confirm availability for your specific FR-F700 model.

What energy savings does the FR-F700 OEC function provide?

Mitsubishi FR-F700 OEC technology reduces motor energy consumption by 10% to 40% on variable torque loads compared to standard V/F control. Actual savings depend on the load profile and operating hours, with HVAC applications in Malaysian commercial buildings typically achieving payback within 12 to 24 months.
