Xinje XL3 PLC Ultra-Compact Malaysia | Flextech

Xinje XL3 PLC packs 8 digital inputs and 8 digital outputs into an ultra-compact enclosure with expansion capability for up to 10 additional modules. Supporting ladder diagram and instruction list programming, the XL3 delivers essential PLC functionality in the smallest possible footprint for Malaysian machine builders and system integrators working within tight panel space constraints.

Key Features and Performance

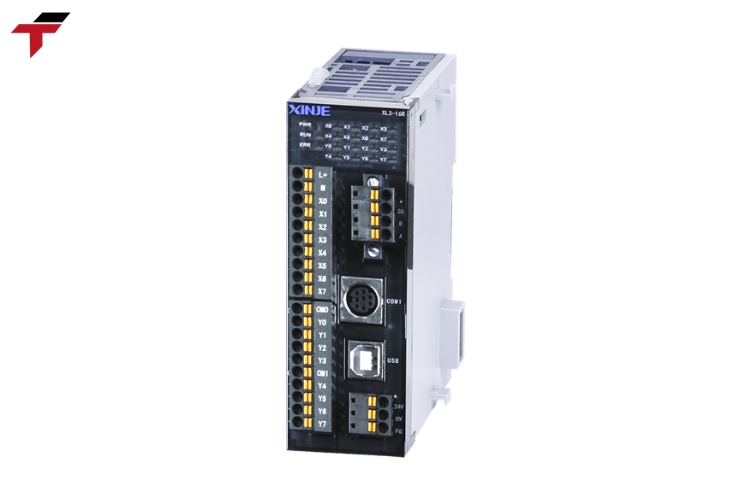

Xinje XL3 PLC provides 16 base I/O points in an ultra-compact housing that occupies minimal DIN rail space. The reduced physical dimensions allow installation in small control panels, OEM machine enclosures, and retrofit applications where existing panel space cannot accommodate standard-size PLCs.

Eight digital inputs accept sensor signals from proximity switches, limit switches, photoelectric sensors, and pushbuttons. Eight digital outputs drive solenoid valves, indicator lights, contactors, and small motors through relay or transistor output circuits depending on the model selected.

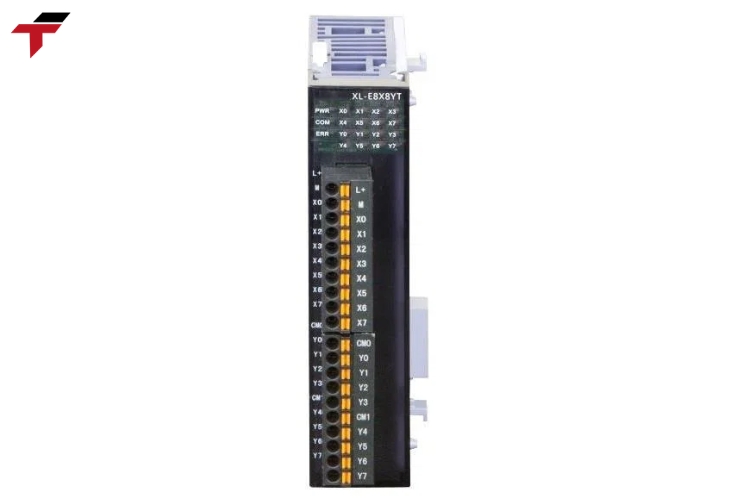

Expansion capability for up to 10 modules extends the XL3 beyond its 16-point base. Digital I/O modules add inputs and outputs in fixed increments, while analog modules handle 0-10V and 4-20mA signals for process control applications. This expansion range transforms the XL3 from a micro-controller into a capable small system controller.

Ladder diagram and instruction list programming through XDPPro software provide familiar development environments for automation engineers. Ladder logic visualization makes program troubleshooting intuitive, while instruction list mode enables compact code for memory-constrained applications.

RS232 and RS485 serial communication connects the XL3 to HMI panels, other PLCs, and serial devices. Modbus RTU protocol support enables data exchange with VFDs, temperature controllers, and SCADA systems through the RS485 port.

Built-in high-speed counters process encoder signals for speed measurement and basic positioning tasks. Pulse outputs drive stepper motors for simple motion control without requiring external positioning modules.

Technical Specifications

Applications in Malaysian Industry

Xinje XL3 PLC serves Malaysian OEM machine builders who require embedded control in compact equipment. Packaging machine manufacturers in Selangor integrate the XL3 into small filling, sealing, and labeling machines where the ultra-compact form factor fits within the machine frame enclosure.

Malaysian agricultural equipment producers use the XL3 for irrigation controllers, sorting machines, and simple automated processing stations. The 10-module expansion allows standardizing on a single PLC platform across machines with varying I/O requirements.

Under NIMP 2030 automation adoption goals, the XL3 provides an accessible automation entry point for Malaysian micro-enterprises and workshops. The low hardware cost and straightforward ladder programming reduce the investment and training barriers to adopting PLC-based machine control.

Small-batch manufacturers across Malaysia deploy the XL3 for test fixtures, quality inspection stations, and material handling equipment where the 16-point base I/O handles the control requirements without expansion.

Xinje XL3 vs Alternatives

Xinje XL3 PLC competes with Mitsubishi FX3G-14M, Siemens LOGO!, and Delta DVP-14SS in the micro-PLC category. The XL3’s 10-module expansion capacity exceeds the expansion limits of most micro-PLCs, providing growth headroom that true micro-controllers cannot match.

Compared to the Xinje XL5E, the XL3 trades Ethernet connectivity for a smaller footprint and lower entry cost. Standalone machines without network requirements benefit from the XL3’s focused feature set, while networked applications should select the XL5E for its built-in Ethernet capability.

Why Source from Flextech Industrial

Flextech Industrial supplies Xinje XL3 PLCs with programming support for Malaysian machine builders and integrators. Our team assists with application sizing, I/O planning, and XDPPro program development to accelerate your project timeline.

We stock XL3 base units and expansion modules for immediate availability across Malaysia. Get a Quote for XL3 systems or OEM volume pricing for machine builder programs.

Frequently Asked Questions

How many I/O points does the Xinje XL3 PLC have?

The XL3 base unit includes 8 digital inputs and 8 digital outputs. With up to 10 expansion modules, the total I/O capacity grows to accommodate applications well beyond the base 16-point count, including both digital and analog signal types.

What programming languages does the XL3 support?

The XL3 supports ladder diagram and instruction list programming through XDPPro software. Ladder diagram provides visual logic representation for intuitive development and troubleshooting, while instruction list offers compact code entry for experienced programmers.

Can the XL3 connect to an HMI panel?

The XL3 connects to HMI panels through RS232 or RS485 serial ports. Compatible panels from Xinje, Delta, Weintek, and other manufacturers communicate with the XL3 using supported serial protocols for operator interface and monitoring.

Is the Xinje XL3 PLC available in Malaysia?

Flextech Industrial stocks Xinje XL3 PLCs in Malaysia with delivery across all states. We offer single units for prototyping and volume quantities for OEM production. Request Pricing for your XL3 requirements including expansion modules.

What is the physical size of the XL3?

The XL3 features an ultra-compact form factor designed to fit in the smallest control panel enclosures. The reduced dimensions make it suitable for mounting inside OEM machine frames, small junction boxes, and retrofit panels where standard PLCs would not fit. Contact Our Team for detailed dimensional drawings and panel layout assistance in Malaysia.
