6GK7542-5DX10-0XE0
RM3,300.00

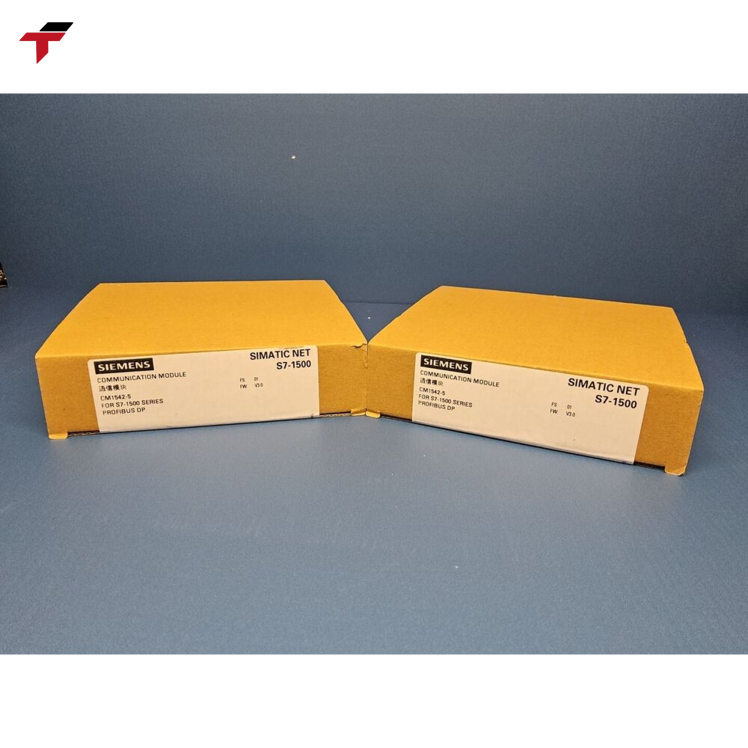

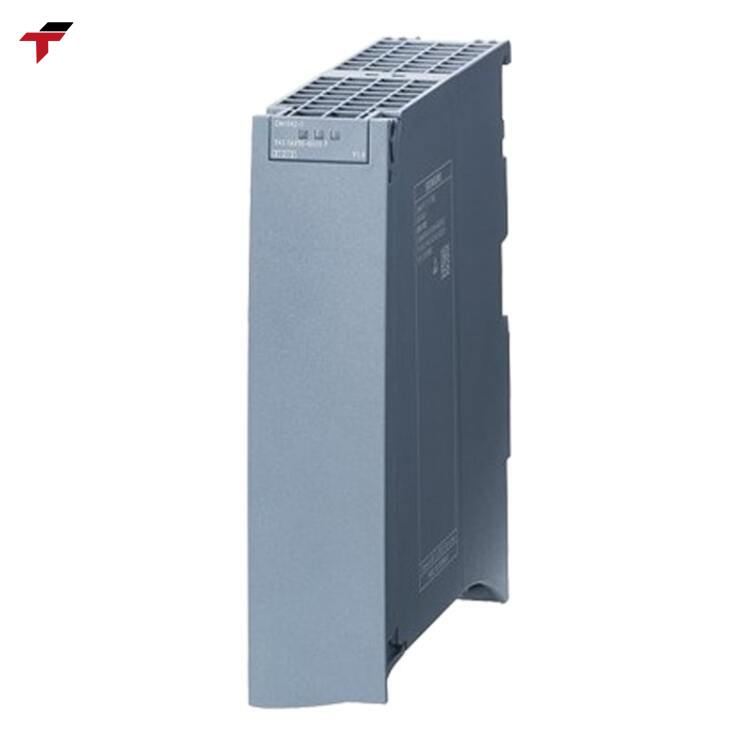

Siemens 6GK7542-5DX10-0XE0 is a CM 1542-5 communication module designed for SIMATIC S7-1500 PLC systems, enabling connection to PROFIBUS DP as a DP-V1 master or DP device. It supports S7 communication, PG/OP communication, data record routing, time synchronization, and diagnostics for industrial automation applications.
Key Features
- Designed for Siemens SIMATIC S7-1500
- Supports PROFIBUS DP communication
- Can operate as DP-V1 master or DP device
- Supports S7 communication and PG/OP communication
- Enables data record routing, time synchronization, and diagnostics
- Compact module design for industrial control cabinets
Applications
Ideal for use in:
- S7-1500 PLC communication systems
- Industrial PROFIBUS DP networks
- Factory automation and machine control
- System integration requiring diagnostics and routing functions
- Control panels and automation cabinets
Product Specifications
- Part Number: 6GK7542-5DX10-0XE0
- Brand: Siemens
- Series: CM 1542-5 / SIMATIC S7-1500
- Product Type: Communication Module
- Communication Interface: 1 × PROFIBUS interface
- Connection Type: 9-pin Sub-D socket (RS485)
- Transmission Speed: 9.6 kbit/s to 12 Mbit/s
- Supply Voltage: 15 V via S7-1500 backplane bus
- Current Consumption: approx. 200 mA
- Power Loss: approx. 3 W
- Protection Class: IP20
- Dimensions (W × H × D): 35 × 142 × 129 mm
- Net Weight: approx. 0.38–0.40 kg
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
6ES7134-6GD01-0BA1
Siemens 6ES7134-6GD01-0BA1 is an analog input module for the SIMATIC ET 200SP distributed I/O system. It provides 4 current inputs for 2-wire and 4-wire transducers, supporting ranges such as 0/4–20 mA and ±20 mA, making it suitable for accurate analog signal acquisition in industrial automation applications.

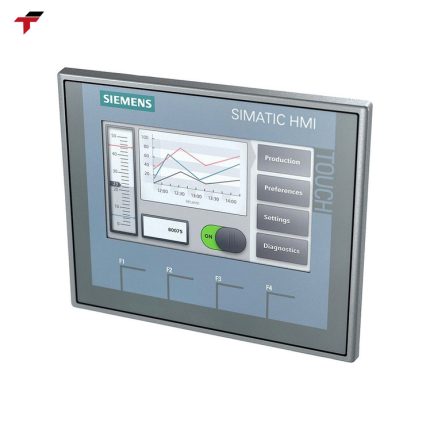

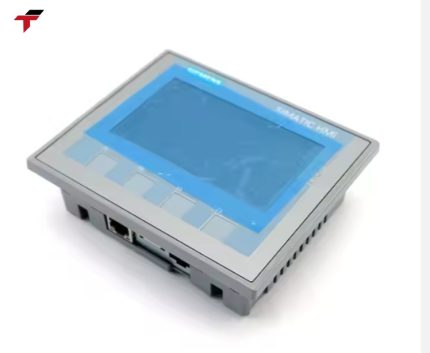

Siemens 6AV2123-2DB03-0AX0
