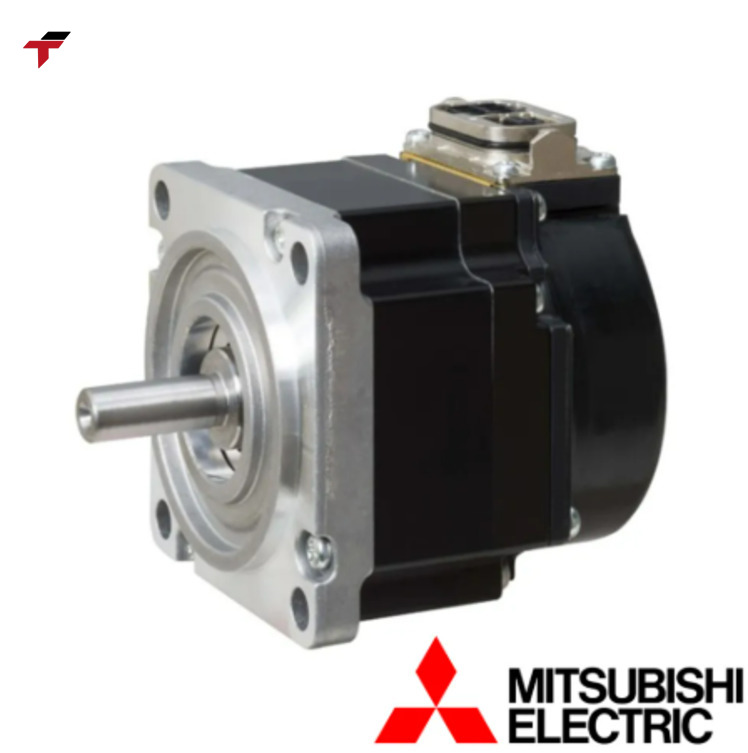

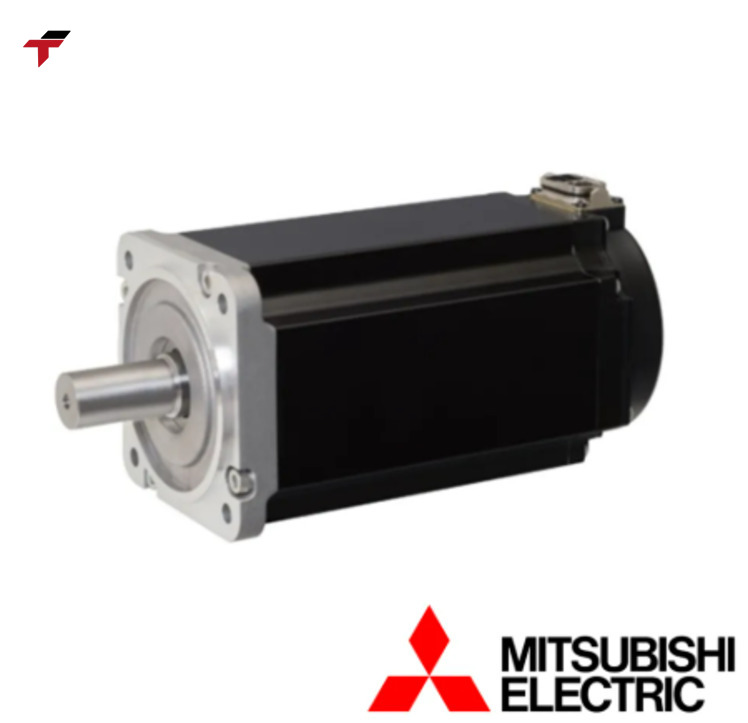

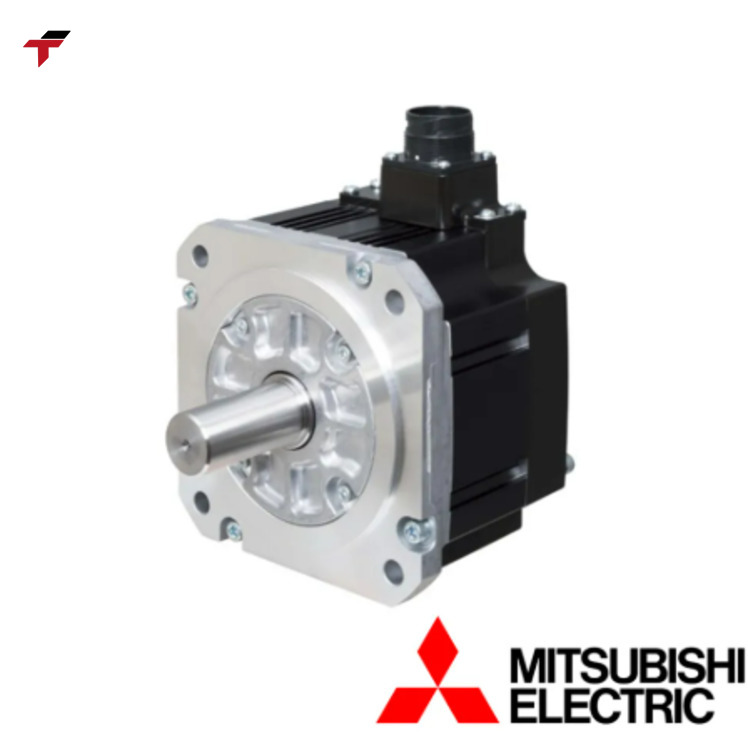

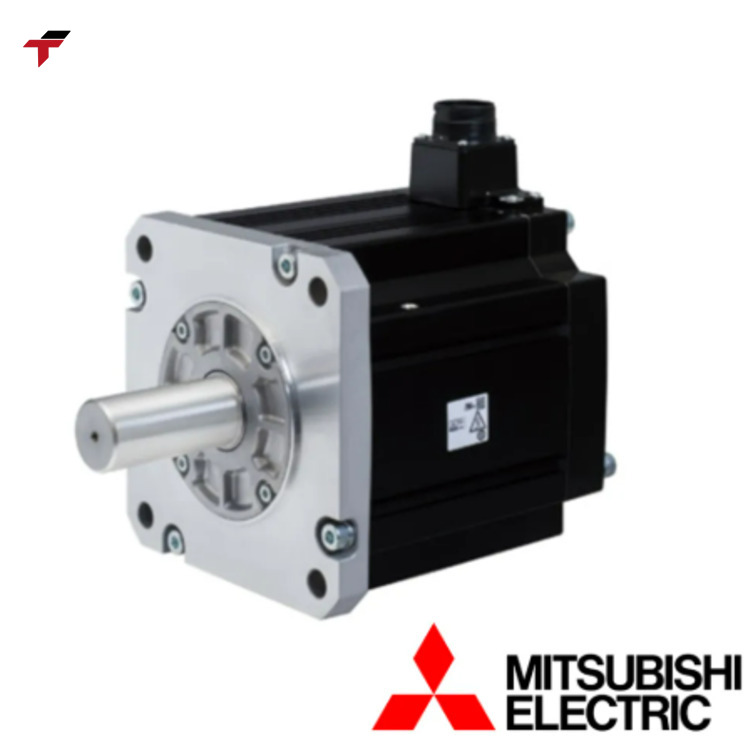

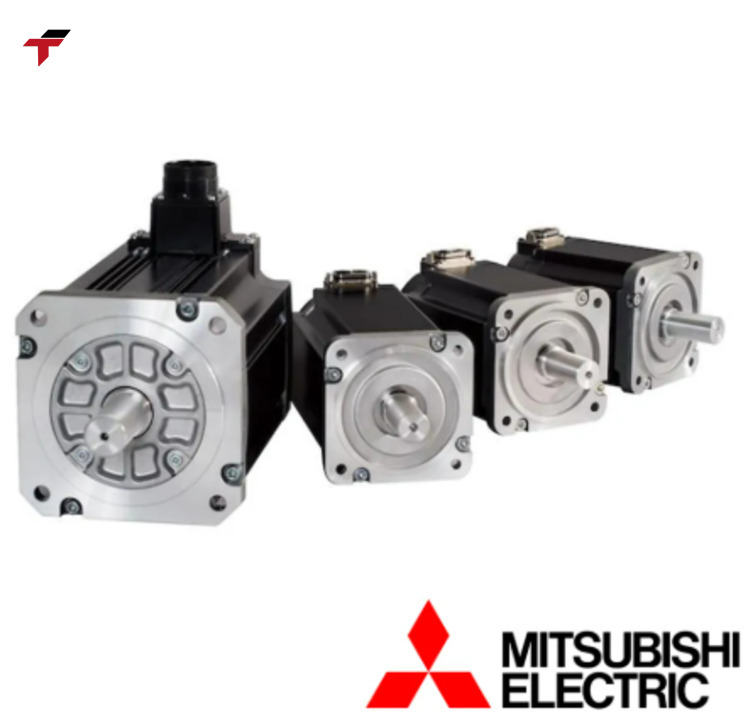

MITSUBISHI HK Series Servo Motor
MELSERVO-J5 HK Series servo motors combine compact design, high-speed performance, and batteryless absolute encoders for precise motion control.
The HK Series includes low-inertia, ultra-low-inertia, and medium-inertia models for different motion requirements. With a 26-bit batteryless absolute position encoder, simplified one-touch connections, and IP67 protection, the series supports efficient installation and reliable operation.
Key Features
Flexible Motor Range
- HK-KT: Small capacity, low inertia; rated speed 3,000 r/min, maximum speed 6,700 r/min
- HK-MT: Small capacity, ultra-low inertia; rated speed 3,000 r/min, maximum speed up to 10,000 r/min
- HK-ST: Medium capacity, medium inertia; rated speed 2,000 or 3,000 r/min
- HK-RT: Medium capacity, ultra-low inertia; rated speed 3,000 r/min, maximum speed 6,700 r/min
- 400 V and flat-type models available for selected series
Batteryless Absolute Encoder
- 26-bit batteryless absolute position encoder included as standard
- Eliminates battery replacement and battery stock management
- Reduces wiring requirements in multi-axis systems
- Retains position data when motors are disconnected from servo amplifiers
- Simplifies machine transportation without special battery handling
Easy Wiring & Installation
- Single-cable connection combines motor power, encoder, and electromagnetic brake
- One-touch lock simplifies connector installation without screw tightening
- Horizontal and vertical cable mounting options
- Compatible with both single- and dual-cable configurations
Compact & High-Performance Design
- Compact motors help reduce machine size and installation space
- Ultra-low inertia models support high-response operation and shorter cycle times
- Maximum speed up to 10,000 r/min for selected high-speed models
- IP67 protection and operation at ambient temperatures up to 60°C*
- Flexible servo amplifier and motor combinations can reduce spare-part requirements and installation space
Applications
Packaging machines, material handling systems, high-speed automation, and other applications requiring precise and high-response motion control.
