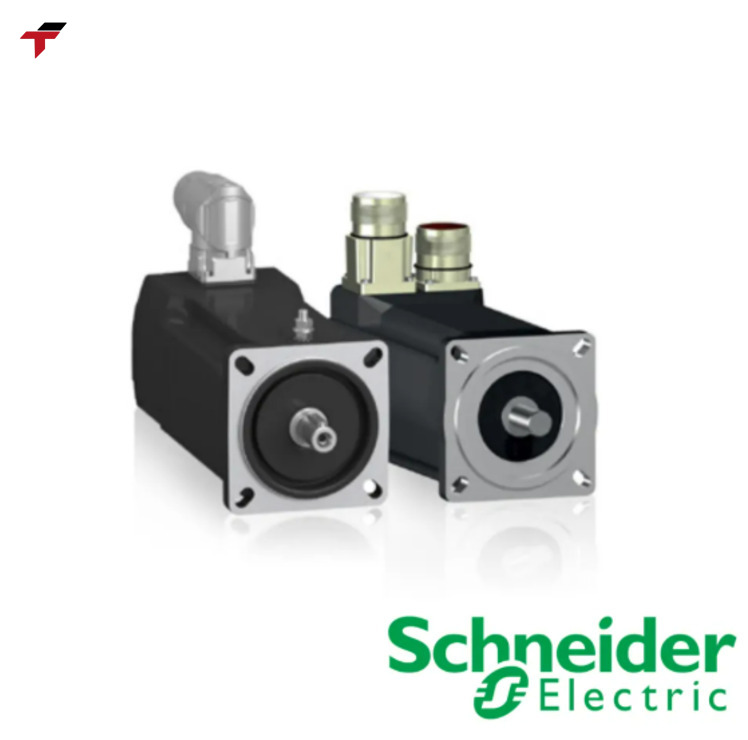

SCHNEIDER Servo Motor SH3 Series
Lexium SH3 servo motors deliver dynamic performance with continuous stall torque from 0.2 to 94.4 Nm and speeds up to 9,000 rpm.
Designed for demanding motion control applications, Lexium SH3 combines high-speed operation, flexible connectivity, and multiple encoder and protection options. The series is available in six flange sizes and with or without a holding brake.
Key Features
High Dynamic Performance
- Continuous stall torque from 0.2 to 94.4 Nm
- Maximum speed up to 9,000 rpm
- Six flange sizes: 40, 55, 70, 100, 140, and 205 mm
Flexible Encoder & Connection Options
- Single-turn or multi-turn Hiperface® SinCos encoder
- Medium- or high-resolution encoder options
- Angular or straight motor connectors
- Smooth or keyed shaft end
- Flexible connectivity
Protection & Brake Options
- Shaft-end protection: IP54 or IP65
- Housing protection: IP65, up to IP67 with optional conformity kit
- Available with or without holding brake
Reliable Environmental Performance
- Operating temperature: -20 to +40°C without derating
- Operation up to 55°C with 1% nominal output power derating per additional °C above 40°C
- Maximum altitude: 1,000 m without derating; up to 3,000 m with specified derating factors
- Insulation class F, with maximum winding temperature of 155°C
- Supports horizontal and vertical mounting positions
