Siemens 6ES7155-6AU01-0CN0
RM999.00

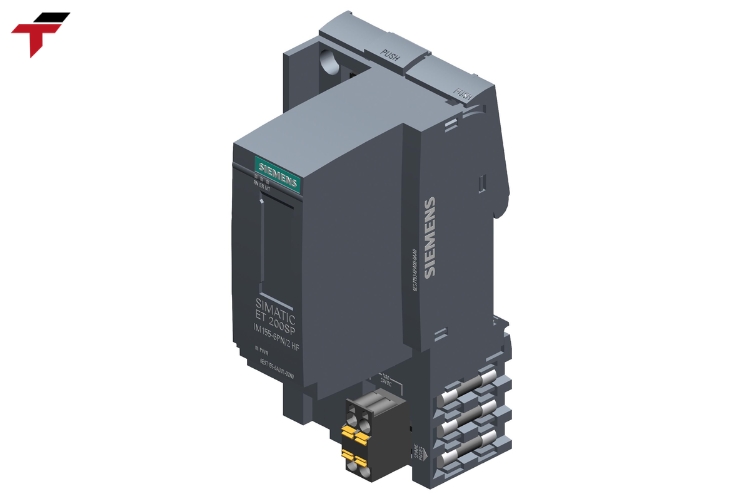

The Siemens 6ES7155-6AU01-0CN0 is a SIMATIC ET 200SP IM 155-6 PN/2 HF high-feature PROFINET interface module designed for distributed automation applications. Serving as the communication gateway between ET 200SP I/O stations and PROFINET controllers, this module offers advanced diagnostics, high-speed communication, S2 system redundancy, and multi-hot swap capability. With support for up to 64 ET 200SP I/O modules and 16 ET 200AL modules, it provides a flexible and scalable solution for modern industrial automation systems.
Product Information
| Specification | Value |
|---|---|
| Model | 6ES7155-6AU01-0CN0 |
| Product Name | IM 155-6 PN/2 HF |
| Product Family | SIMATIC ET 200SP |
| Communication Protocol | PROFINET IO |
| Network Ports | 2-Port Switch |
| Supply Voltage | 24 VDC |
| Voltage Range | 19.2–28.8 VDC |
| Current Consumption | Max. 700 mA |
| Inrush Current | Max. 4.5 A |
| Typical Power Loss | 2.4 W |
| Maximum ET 200SP Modules | 64 |
| Maximum ET 200AL Modules | 16 |
| Dimensions (W × H × D) | 50 × 117 × 74 mm |
| Weight | Approx. 0.169 kg |
| Engineering Software | TIA Portal V15.1+ |
| Country of Origin | Germany |
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
6ES7132-6BD21-0BA0
6ES7134-6GD01-0BA1

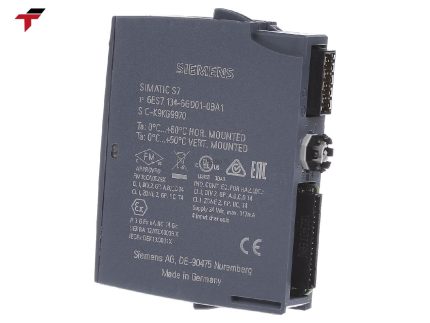

Siemens 6ES7134-6GD01-0BA1 is an analog input module for the SIMATIC ET 200SP distributed I/O system. It provides 4 current inputs for 2-wire and 4-wire transducers, supporting ranges such as 0/4–20 mA and ±20 mA, making it suitable for accurate analog signal acquisition in industrial automation applications.
