PRO FACE GP4000 Series Standard HMI

Designed as a standard HMI solution for industrial equipment, the GP4000 Series offers clear 65,536-color visualization and extensive connectivity with PLCs, motion controllers, robots, and other devices. Its flexible hardware options, remote monitoring capabilities, data management tools, and simplified maintenance help support efficient machine operation from design to long-term use.

Key Features

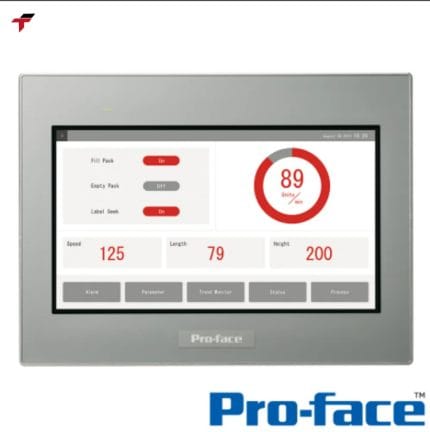

Smart Display

• 65,536-color TFT LCD provides clear and detailed machine visualization.

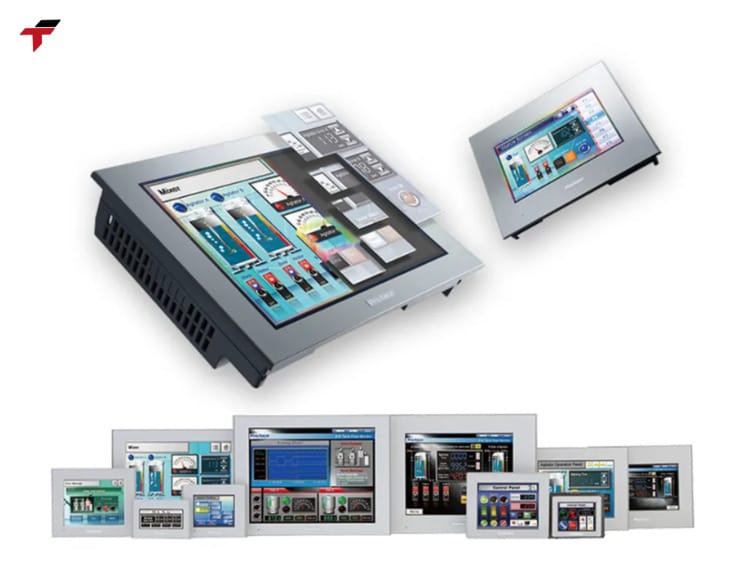

• Available in multiple sizes, including a 7.0″ wide model and an enlarged 5.7″ display.
• Realistic 3D parts, customizable start screens, and ready-made screen samples simplify screen development.
• Enhanced durability options help protect the display from cutting oils and chemicals.
• Selected models support two-point touch operation to help prevent unintended input during critical operations.

Smart Connection

• Supports communication with a wide range of PLCs, motion controllers, robots, temperature controllers, inverters, and other industrial devices.
• GP-Pro EX enables flexible configuration of lamps, switches, and operator interfaces.
• Optional fingerprint authentication helps improve operator access control.
• Remote monitoring and operation support large or long-distance equipment.
• Ethernet Multi-Link allows additional display units to be used as sub-displays without changing control device settings.
• Multiple USB devices, including barcode readers, USB storage, and EZ Series accessories, can be connected.
• COGNEX In-Sight integration enables on-site camera monitoring and adjustment, supporting up to 3 camera views on one screen and up to 16 connected cameras.
• Siemens STEP 7 tag import helps reduce screen development time.

Smart Information

• Alarm Analysis helps operators investigate equipment issues using chronological alarm-related information.
• Sampling and historical trend functions collect and visualize production data such as temperature and voltage.
• Operation Log records operator actions for traceability and analysis.
• Flexible recipe functions support multiple data formats and non-contiguous addresses.
• CSV transfer enables convenient updates of recipe and alarm data through USB or SD card.
• Internal Logic and D-Script support customized control, data processing, and maintenance functions.

Smart Installation & Maintenance

• User-replaceable battery simplifies long-term maintenance and data retention.
• Special mounting projections help prevent accidental dropping during panel installation.
• Consistent cable connection direction makes wiring and routing easier.
• Compatible panel cutout dimensions simplify replacement of existing HMI units.
• Screen data can be transferred via USB flash drive or SD card without requiring a PC or software license on site.
• LED backlighting and brightness adjustment help reduce power consumption.
• Multiple international certifications and enclosure standards support use in overseas and demanding industrial applications.
