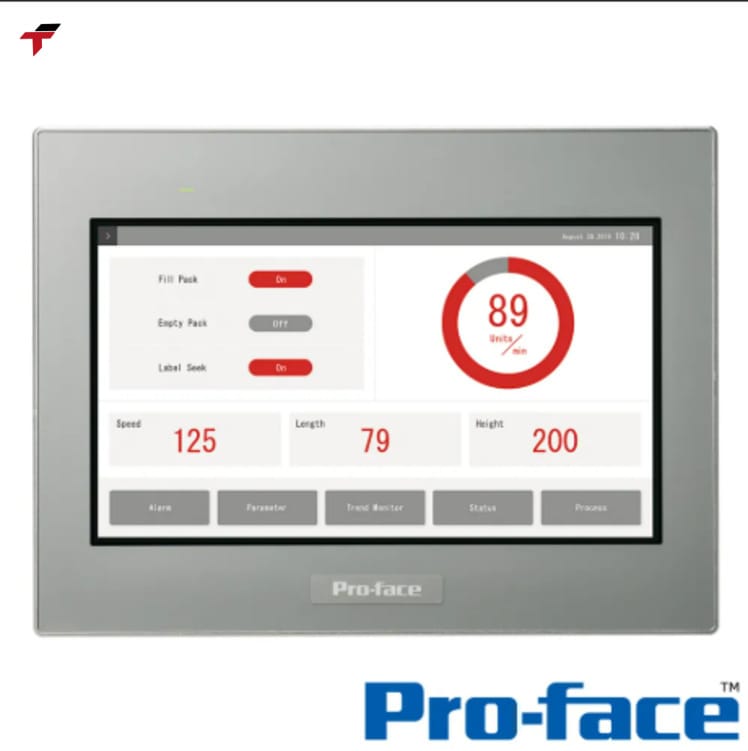

PRO FACE SP5000X Series Outdoor HMI Demands

Features

A. Sunlight-Readable

• High-brightness LCD up to 1000 cd/m² for clear visibility under sunlight.
• Anti-glare design reduces reflections for better outdoor readability.
• Glass touchscreen improves light transmission and screen visibility.

B. Rugged & Durable

• UV-resistant construction blocks up to 99% of UV rays at 380 nm.
• Full coating on key components improves durability in harsh environments.
• Operating temperature from -30°C to 70°C (-22°F to 158°F).
• Supports IP66F, IP67F, and Type 4X protection.
• Compatible with DC 12–24 V power input for vehicles, engines, and generators.
• Supports hazardous-area applications including ATEX/IECEx Zone 2/22.
• Harsh Environment models support Class 3C3 corrosive gas conditions.

C. Easy Maintenance

• Modular structure allows the display and box modules to be replaced separately.
• Application data can be transferred using a removable SD card, without requiring a PC.
• Battery-less design reduces maintenance requirements.

D. IoT & PC Functions

• Open Box with Windows 10 provides access to applications such as Excel, Word, PDF readers, web browsers, and multimedia players.
• Supports flexible information display and multimedia applications.

E. Easy Screen Creation

With GP-Pro EX, users can create professional and intuitive HMI screens using:

• Ready-made sample screens and customizable start screens
• 3D parts, meters, switches, and indicator lamps
• Animation effects
• 7-segment and bitmap fonts
• Windows fonts and multi-language support

Applications

Suitable for demanding outdoor applications such as:

• Construction equipment
• Special-purpose vehicles and fire trucks
• Generators and compressors
• Parking lots and gas stations
• Oil & Gas
• Other harsh or hazardous environments
