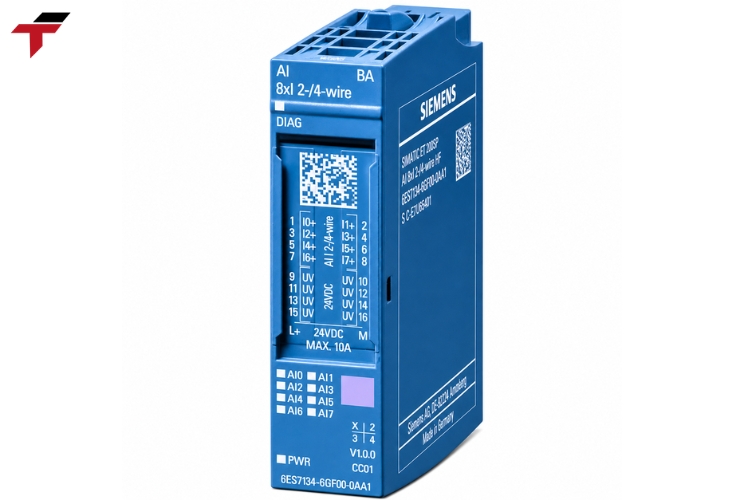

Siemens 6ES7134-6GF00-0AA1
RM930.00
The Siemens 6ES7134-6GF00-0AA1 is a SIMATIC ET 200SP Analog Input Module (AI 8xI 2-/4-wire Basic) designed for accurate acquisition of analog current signals in distributed automation systems. Featuring 8 analog input channels, support for 2-wire and 4-wire transmitters, and 16-bit resolution, the module provides reliable measurement of process signals such as 0/4–20 mA from sensors, transmitters, and industrial instruments. Its compact ET 200SP design, integrated diagnostics, and seamless integration with PROFINET-based systems make it an excellent solution for process and factory automation applications.
Product Information
| Specification | Value |
|---|---|
| Model | 6ES7134-6GF00-0AA1 |
| Product Name | AI 8xI 2-/4-wire BA |
| Product Family | SIMATIC ET 200SP |
| Module Type | Analog Input |
| Number of Channels | 8 |
| Signal Type | Current Input |
| Connection Method | 2-wire / 4-wire |
| Resolution | 16-bit |
| Supply Voltage | 24 VDC |
| Voltage Range | 19.2–28.8 VDC |
| Typical Power Loss | 0.7 W |
| Width | 15 mm |
| Height | 73 mm |
| Depth | 58 mm |
| Weight | Approx. 31 g |
| Compatible BaseUnits | BU Type A0, A1 |
| Engineering Software | TIA Portal |
| Country of Origin | Germany |
