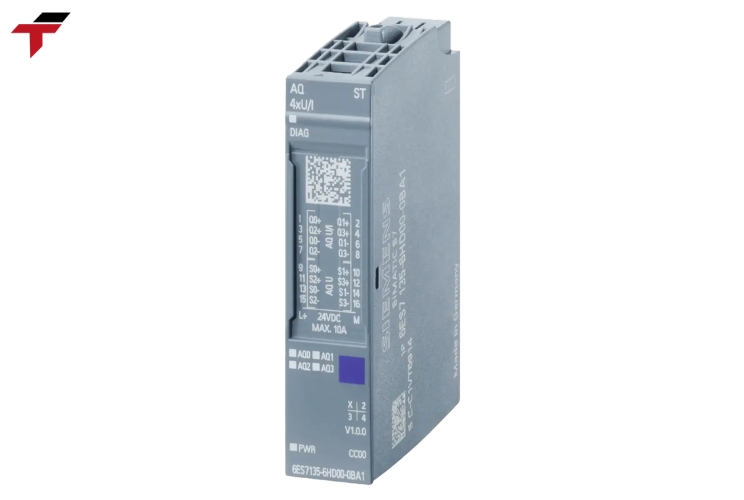

Siemens 6ES7135-6HD00-0BA1
RM810.00
The Siemens 6ES7135-6HD00-0BA1 is a SIMATIC ET 200SP Analog Output Module (AQ 4xU/I Standard) designed for accurate analog signal output in distributed automation systems. Equipped with 4 configurable analog output channels, the module supports both voltage and current signals, enabling precise control of variable frequency drives (VFDs), control valves, actuators, and other field devices. With 16-bit resolution, integrated diagnostics, and seamless integration into the ET 200SP platform, it delivers reliable performance for factory and process automation applications.
Product Information
| Specification | Value |
|---|---|
| Model | 6ES7135-6HD00-0BA1 |
| Product Name | AQ 4xU/I Standard |
| Product Family | SIMATIC ET 200SP |
| Module Type | Analog Output |
| Number of Channels | 4 |
| Resolution | 16-bit |
| Output Voltage | 0–10 V, 1–5 V, ±5 V, ±10 V |
| Output Current | 0–20 mA, 4–20 mA, ±20 mA |
| Accuracy | ±0.3% |
| Supply Voltage | 24 VDC |
| Compatible BaseUnits | BU Type A0, A1 |
| Width | 15 mm |
| Height | 73 mm |
| Depth | 58 mm |
| Weight | Approx. 31 g |
| Engineering Software | TIA Portal |
| Country of Origin | Germany |
Key Benefits
- Provides precise analog control through 4 configurable output channels.
- Supports both voltage and current output signals in a single module.
- Delivers high measurement accuracy with 16-bit resolution.
- Simplifies maintenance through integrated diagnostics and online parameter changes.
- Saves cabinet space with the compact 15 mm ET 200SP form factor.
