What Defines a Servo Motor?

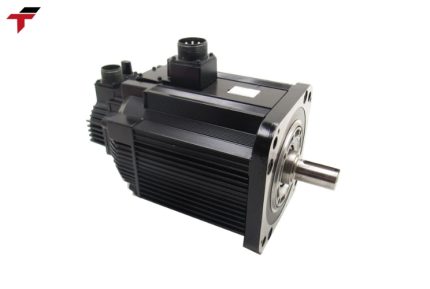

A servo motor is a brushless AC synchronous motor with an integrated absolute or incremental encoder providing continuous shaft position data to a paired servo drive amplifier, enabling closed-loop control at position resolutions of 17-26 bits per revolution and rated speeds of 2,000-3,000 rpm with peak torque at 300% of continuous rated torque.

The encoder is the defining component. Standard induction motors and VFDs provide speed control - no shaft position data, no closed-loop position control capability. A servo motor's encoder feeds shaft position data back to the servo drive at update rates of 1-4 kHz, enabling position error correction within a single scan cycle. This feedback architecture achieves repeatability of ±0.001° or better on 26-bit absolute encoder systems.

Servo motors carry IP65 protection as the standard minimum - dust-tight and water-jet resistant - adequate for Malaysian factory-floor field installations in standard machine frames. Food processing and pharmaceutical applications specify IP67 (temporary submersion protection) or higher for washdown environments.

Servo Motor Categories by Inertia Class

Malaysian machine builders select servo motors by inertia class - matching motor inertia to the application's mechanical load inertia determines settling time, acceleration profile achievability, and servo loop stability.

Low inertia servo motors (exemplified by Panasonic MSM and Autonics SA series) deliver the fastest acceleration and deceleration profiles at the cost of lower continuous torque. These are the correct selection for high-speed, light-load applications: labelling machines, PCB handling, SMT feeder axes, and high-speed insertion machines where cycle times below 500 ms are required.

Medium inertia servo motors (Panasonic MDM and Delta ECMA-B series) balance speed and torque for the broadest range of Malaysian machine applications: packaging lines, conveyor indexing, material handling, and machine tool feed axes. Medium inertia motors are the default selection for applications without extreme speed or extreme torque requirements.

High-torque servo motors (Panasonic MHM series) provide higher continuous torque ratings for load-intensive applications: robotic arm joints, rotary index tables, press feed axes, and heavy material handling. MHM motors operate at the same rated speeds as MDM but with larger frame sizes generating higher continuous torque at equivalent RPM.

OEM Brands Available Through Flextech

Autonics SA and SR series servo motors are the value-tier entry point - Korean OEM engineering at pricing accessible to budget-constrained Malaysian SME machine builds. Autonics servo motors are a newer addition to Autonics' Malaysian portfolio; buyers should verify Malaysian service and spare parts availability for their specific model before committing to Autonics servo for high-uptime production applications.

Delta ECMA and ECM-B series servo motors pair exclusively with Delta ASDA-A3 and ASDA-B3 servo drives. Delta's servo motor range integrates with Delta's PLC, VFD, and HMI ecosystem for Malaysian plants pursuing single-vendor automation. The ECMA series covers the broadest Delta servo power range; ECM-B and ECM-B3 series address medium-frame applications with higher torque density. Delta occupies the value-to-mid tier with competitive pricing for Malaysian SME machine builds where Delta ecosystem integration is the priority.

Panasonic MSM, MDM, and MHM series servo motors pair with Panasonic MINAS A6 servo amplifiers (0.05-15 kW). The three series cover low, medium, and high-torque inertia classes within a unified electrical interface - a Malaysian machine builder can swap between MSM, MDM, and MHM frames by updating MINAS A6 parameter tables without changing the servo drive hardware. This inertia-class flexibility within a single drive platform reduces Flextech's stocking complexity and simplifies Malaysian machine builder spare parts management.

For most Malaysian manufacturers, selecting servo motors and servo drives from the same OEM family - Delta ECMA with Delta ASDA, or Panasonic MSM/MDM/MHM with MINAS A6 - eliminates encoder compatibility risk, simplifies commissioning, and provides a single-vendor warranty path. Cross-brand mixing of servo motors and drives from different OEM families is not supported and prevents closed-loop initialisation.

How to Select Servo Motors for Malaysian Manufacturing

Servo motor selection follows four measurable criteria: power rating, inertia class, encoder type, and IP protection.

Power rating - match the servo motor power output to the mechanical load requirement: calculate the load inertia, required acceleration, and duty cycle to determine continuous and peak torque requirements. The servo motor continuous torque rating must exceed the continuous torque demand; the peak torque (300% of continuous) must exceed the acceleration torque demand. Undersizing the motor frame causes thermal overload during acceleration-intensive duty cycles on Malaysian high-throughput packaging lines.

Inertia class - the load-to-motor inertia ratio determines servo loop stability. Ratios below 10:1 (load inertia to motor inertia) achieve stable servo response without tuning complexity. Ratios above 30:1 require careful gain tuning or mechanical inertia reduction (via gearbox). Select the inertia class that keeps the load-to-motor ratio within the servo drive's automatic tuning range.

Encoder type - incremental encoders (Autonics SA series) require homing on power-up; absolute encoders (Delta ECMA, Panasonic MSM/MDM/MHM) retain position across power cycles without homing. Absolute encoders are mandatory for applications where power loss mid-cycle would cause machine damage if position reference is lost - robotic arms, tool changers, vertical axes with gravity loading.

IP protection class - IP65 (standard servo motor rating) covers Malaysian factory-floor environments inside machine frames. Specify IP67 motors for F&B applications where periodic water washdown contacts the motor body. For high-pressure steam cleaning in rubber glove or pharmaceutical environments, verify the motor's IP class against the actual washdown pressure specification.

Applications in Malaysian Manufacturing

Packaging machinery - Malaysian packaging OEMs building form-fill-seal machines, labellers, and cartoning equipment specify Panasonic MSM low-inertia servo motors for pick-and-place axes and registration drives where cycle times below 300 ms are production requirements.

Semiconductor and electronics (Penang) - delta robot pick-and-place systems use low-inertia servo motors at 3,000 rpm for chip transfer between process stations. Position accuracy below 5 µm requires 23-bit or higher encoder resolution - Panasonic MSM with MINAS A6 is the primary specification in Malaysian OSAT facilities.

CNC machining - Malaysian job shops using Mitsubishi CNC platforms pair MR-J4/J5 servo drives with Mitsubishi HG/HK series motors. Delta ECMA motors with ASDA drives are the value-tier CNC retrofit option for Malaysian SME machining centres.

Automotive robotics (Selangor, Johor) - welding robot positioner axes use medium-to-high torque servo motors (Panasonic MDM/MHM) for rotary table positioning under substantial workpiece inertia. Panasonic MINAS A6's auto-tuning algorithm accommodates the variable inertia as workpieces change between production runs.

Indicative Servo Motor Pricing in Malaysia

Pricing is order-of-magnitude only. Motor pricing scales with frame size and options (brake, key, shaft modification). Contact Flextech for accurate current quotation including matched servo drive pairing.

How to Order Servo Motors from Flextech

Flextech provides servo motor quotations within 24-48 hours. Specify the motor model number or the application parameters: required torque, speed, inertia class, encoder type, IP rating, shaft diameter, and brake requirement. Flextech confirms motor-drive pairing compatibility, current pricing, and delivery schedule for Peninsular Malaysia. Same-day Klang Valley dispatch is available for in-stock standard motor models.

For brand-specific servo motor information: [Autonics servo motors](/product-category/servo-motors-autonics/) for SA and SR series; [Delta servo motors](/product-category/servo-motors-delta/) for ECMA and ECM-B series; [Panasonic servo motors](/product-category/servo-motors-panasonic/) for MSM, MDM, and MHM series. For servo drive selection and motor-drive pairing, see [servo drives](/product-category/servo-drive/) for compatible Mitsubishi and Panasonic amplifier options.

Servo Motor FAQ

What servo motor brands does Flextech stock in Malaysia?

Flextech stocks servo motors from Autonics (SA and SR series), Delta (ECMA and ECM-B series), and Panasonic (MSM, MDM, and MHM series). Each motor series must be paired with its corresponding servo drive - Panasonic MSM/MDM/MHM with Panasonic MINAS A6 amplifiers, Delta ECMA with Delta ASDA drives.

What is the difference between MSM, MDM, and MHM Panasonic servo motors?

Panasonic MSM motors are optimised for high-speed, fast-acceleration applications. MDM motors balance speed and torque for general machine tool and packaging applications. MHM motors provide higher continuous torque for load-intensive applications. All three series pair with Panasonic MINAS A6 servo drives.

What is the price range for servo motors in Malaysia?

Servo motor pricing in Malaysia at 1 kW reference: approximately RM 1,800-3,200 for value-tier basic incremental encoder models, RM 4,000-7,500 for mid-tier absolute encoder models, and RM 9,500-18,000 for premium 24-bit absolute encoder with brake models. Contact Flextech for a current quote.

Do servo motors need IP67 protection for Malaysian factory environments?

Standard servo motors carry IP65 protection - adequate for Malaysian factory-floor installations. F&B applications requiring washdown cleaning need IP67 or higher. Always specify the IP class and operating environment when requesting a quotation.

Can I use a Delta servo motor with a Panasonic servo drive?

No. Servo motors and servo drives are matched pairs from the same OEM family. A Delta ECMA servo motor cannot be initialised by a Panasonic MINAS drive - the encoder communication protocol is OEM-proprietary. Using mismatched servo motor and drive combinations voids warranty and prevents closed-loop position control.
