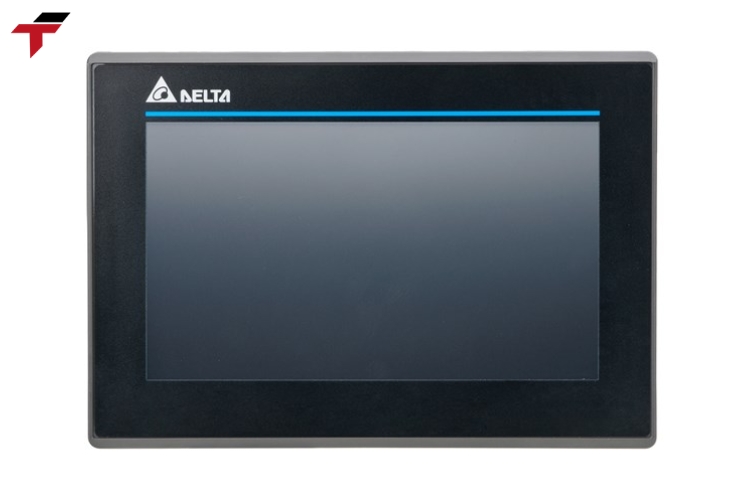

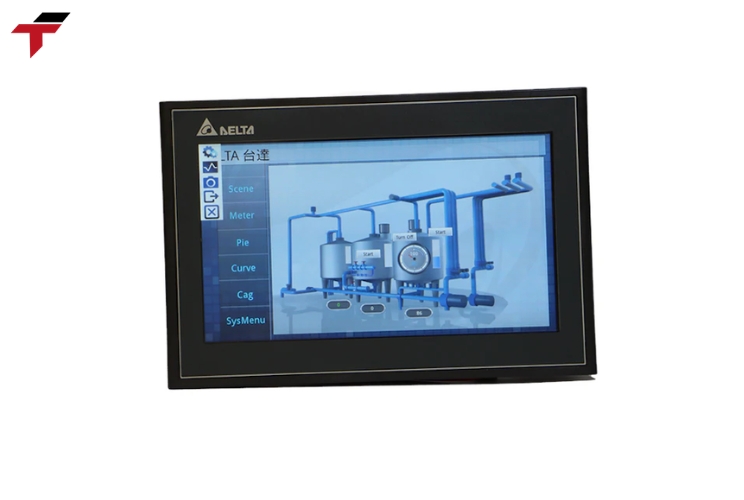

DELTA HMI DOP-100

Flextech stocks common Delta DOP-100 models including the DOP-107WV (7-inch widescreen) for same-day Klang Valley dispatch. The DOP-100 series operates with Delta’s free DOPSoft programming software and supports over 200 pre-built communication driver protocols for Mitsubishi, Siemens, Panasonic, Omron, Delta, Xinje, and other major Malaysian automation brands – covering the full PLC and inverter communication requirement for most Malaysian machine and panel builder applications.

DOP-100 Series Model Overview

Technical Specifications

Communication and Compatibility

Modbus RTU (RS-485 COM2): The DOP-100 Modbus RTU master interface communicates with any Modbus RTU slave device – Mitsubishi FR-D700/FR-E800/FR-A800 inverters, Panasonic VF200/MK300 drives, Xinje VH1/VH6 inverters, and PLC Modbus register maps. Standard Modbus function codes 03/06/16 enable read/write of frequency setpoints, drive status, and process values – the same protocol across all VFD brands.

Ethernet Modbus TCP: DOP-107WV and larger models include Ethernet for Modbus TCP client communication, enabling connection to SCADA systems, remote HMI monitoring, and data logging to network-connected servers. Delta’s DCON UDP protocol provides high-speed cyclic data exchange with Delta PLC Ethernet modules.

PLC protocol drivers in DOPSoft: Delta’s DOPSoft pre-built driver library covers Mitsubishi FX-series (RS-232 programming port and RS-485 Modbus adapter), Siemens S7-200/S7-300 (RS-485 PPI and MPI), Omron CP1/CJ-series, Panasonic FP-series, Allen-Bradley Micro800, and Delta’s own DVP and AS series PLCs. Malaysian machine builders standardised on Mitsubishi FX3G + Delta DOP-107WV use Mitsubishi FX serial driver in DOPSoft without additional communication hardware.

DOPSoft Programming Software

DOPSoft – Delta’s free Windows HMI programming environment for DOP-100 series:

• Screen editor: Drag-and-drop graphic objects – buttons, indicator lamps, numeric displays, bar graphs, trend charts, alarm lists, recipe tables
• Symbol factory: 2,000+ industrial icon set (valves, motors, pumps, tanks, conveyors) for rapid screen design
• Communication setup: Select PLC/VFD brand from driver library → configure COM port settings → automatic tag address mapping
• Simulation mode: Test screen logic on PC without HMI hardware – reduce commissioning time on Malaysian machine builds
• Multilingual support: English, Chinese, Malay, Thai display labels per language button – applicable for Malaysian operator panels requiring dual-language display

DOPSoft is available free of charge from Delta Electronics’ official download portal – no per-project or annual license fee.

Applications in Malaysian Manufacturing

Machine control panel operator interface: DOP-107WV panel-mount provides the operator with motor start/stop, speed setpoint entry, process value display, and fault alarm on a single 7-inch touchscreen – replacing a panel of discrete pushbuttons, pilot lamps, and analog meters. Malaysian packaging machine builders use DOP-107WV paired with Mitsubishi FX3G PLC as the standard control panel combination for sub-RM 15,000 panel cost target.

Inverter operator station: DOP-100 HMI as remote operator station for FREQROL or other inverters – displaying output frequency, current, fault history from Modbus RTU inverter register map, with local speed setpoint override from touchscreen. Eliminates separate drive parameter unit (FR-PU07) for operator-accessible panel mounting.

Data logging: DOP-100 Ethernet models support local data logging to USB flash drive or network server – time-stamped process values for Malaysian food processing and chemical production audit trail requirements.

Indicative Pricing

Contact Flextech for current pricing and stock confirmation on specific DOP-100 models.

How to Order

Flextech provides Delta DOP-100 quotations within 24-48 hours. Specify the DOP-100 model number (screen size + Ethernet requirement) and the target PLC or VFD brand for communication driver confirmation. Common DOP-107WV units are available for same-day Klang Valley dispatch from Flextech Puchong.

For the HMI product category, see [HMI Malaysia](/product-category/hmi/). For compatible Mitsubishi PLC, see [Mitsubishi FX3G FX3S PLC](/product/mitsubishi-fx3g-fx3s-plc-malaysia/).

Delta DOP-100 FAQ

What screen sizes are in the Delta DOP-100 series?

1.3 inch (DOP-103BQ), 7 inch (DOP-107BV/DOP-107WV), 10.1 inch (DOP-110WS), 12.1 inch (DOP-112WX), 15.4 inch (DOP-115WX). All TFT LCD colour touch. DOP-107WV (7-inch, Ethernet) is the most common Malaysian model.

What communication protocols does the DOP-100 support?

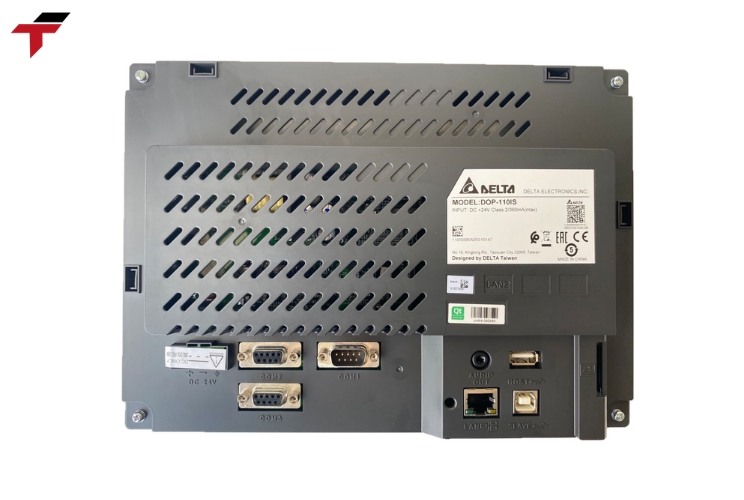

RS-232 (COM1), RS-485 Modbus RTU (COM2), Ethernet Modbus TCP (DOP-107WV and above). 200+ PLC/VFD protocol drivers built into DOPSoft.

Is Delta DOP-100 compatible with Mitsubishi FX PLCs?

Yes. DOPSoft includes Mitsubishi FX-series serial driver. Connect DOP-100 COM1 (RS-232) or COM2 (RS-485) to FX3G RS-422/RS-485 port using appropriate cable + DOPSoft Mitsubishi protocol selection.

What is DOPSoft and how do I program the DOP-100?

DOPSoft is Delta’s free Windows HMI programming software. Design screens on PC (drag-drop objects, configure communication), download via USB. No license fee. Includes 2,000+ symbol factory icons + simulation mode.

What is the price of Delta DOP-107WV in Malaysia?

Approximately RM 1,200-2,200, subject to stock. Contact Flextech for current pricing – same-day Klang Valley dispatch on in-stock DOP-107WV units.
