Human machine interface panels give operators direct visual control over automated production lines, replacing banks of indicator lights and push buttons with intuitive touch-screen displays. From a 4-inch compact panel on a standalone pump to a 22-inch control room terminal overseeing an entire palm oil refinery, the right HMI improves response time, reduces operator error, and centralises diagnostic data. Flextech Industrial supplies genuine OEM HMI panels from Siemens, Mitsubishi Electric, Omron, and Pro-face — all available with local stock and technical selection support in Malaysia.

Types of HMI Panels by Screen Size

HMI panels are classified primarily by display size, which determines how much process information an operator can view and interact with at once.

Compact HMI Panels (4″–5.7″)

Compact human machine interface screens handle single-machine monitoring where panel space is limited. The Siemens KTP400 Basic at 4 inches and Mitsubishi GOT2000 GT21 at 3.8–7 inches both fit tight enclosure cutouts. Compact HMI panels suit small conveyor drives, pump controls, and HVAC units where the operator needs only a few status indicators and parameter adjustments.

Standard HMI Panels (7″–10″)

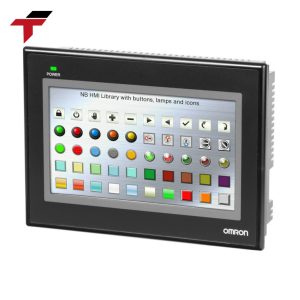

Standard human machine interface panels cover the widest range of applications in Malaysian factories. The 7-inch format — represented by the Siemens KTP700 (800×480), Mitsubishi GT25, and Omron NB7 — is the most frequently specified size across packaging, assembly, and batch processing lines. Moving to 10 inches adds room for multi-zone layouts and trending graphs. These mid-size panels balance screen real estate against cost, typically ranging from RM 1,500 to RM 8,000 depending on brand and feature set.

Large HMI Panels (12″–22″)

Large human machine interface displays serve supervisory roles: SCADA overviews, control-room dashboards, and multi-line production monitoring. Siemens Comfort Panels scale to 22 inches at full HD resolution (1920×1080), supporting PDF viewing, VNC remote access, and email alerts. The Mitsubishi GT27 at 15 inches offers multi-touch and video playback for advanced diagnostics. Omron’s NA Series integrates machine control and HMI logic in one unit, reducing hardware count. Large HMI panels are common in water treatment facilities, power plants, and palm oil mills across Selangor and Sabah.

Choosing the right panel size depends on how much data operators must monitor simultaneously — a decision closely tied to the selection criteria below.

How to Choose the Right HMI Panel

Selecting a human machine interface involves balancing display requirements, connectivity, and operating conditions.

Screen size and resolution. Match the display to the complexity of your process. A 7-inch 800×480 panel handles a single packaging machine; a 15-inch 1280×800 screen suits multi-zone batch control. Operators working at arm’s length need larger text and buttons — consider 10 inches minimum for standing workstations.

Communication protocol. The HMI must connect natively to your PLC. Siemens panels use PROFINET for seamless TIA Portal integration. Mitsubishi GOT2000 communicates via CC-Link and Ethernet with MELSEC PLCs. Omron NA panels run on EtherCAT within the Sysmac ecosystem. For mixed-brand environments, Pro-face GP4000 supports over 100 protocol drivers, making it the most versatile multi-vendor option in Malaysia.

Software environment. Evaluate development time alongside panel cost. Siemens WinCC (TIA Portal), Mitsubishi GT Designer3, Omron Sysmac Studio, and Pro-face GP-Pro EX each have distinct workflows. Teams already using a specific PLC programming environment benefit from same-brand HMI tools that share tag databases and project files.

IP rating. Food and beverage lines require IP65 or IP67-rated HMI panels to withstand washdown. Standard indoor applications need IP54 at minimum. Confirm the panel’s front-face and rear-enclosure ratings match your installation environment.

Budget. Economy HMI panels (Mitsubishi GT21, Omron NB3.5) start around RM 1,000. Mid-range 7–10 inch panels from Siemens and Mitsubishi sit between RM 3,000 and RM 8,000. Premium large-format Comfort Panels and Unified Panels reach RM 15,000 to RM 20,000. Contact Flextech for current pricing on specific models.

Understanding the communication needs of your HMI naturally connects to the broader question of PLC compatibility, covered in the bridge section.

HMI Price Ranges in Malaysia

Tier	Price Range (MYR)	Example Models	Typical Application
Economy	RM 1,000 — RM 3,000	Mitsubishi GT21, Omron NB Series, Siemens KTP400	Simple machine display, pump status
Mid-range	RM 3,000 — RM 8,000	Siemens KTP700, Mitsubishi GT25, Pro-face GP4300	Packaging lines, batch control, assembly
Premium	RM 8,000 — RM 20,000	Siemens Comfort Panel 15″, Mitsubishi GT27, Omron NA	SCADA overview, control rooms, multi-line

Prices cover the panel unit only. Cables, mounting brackets, and software licences may add to total procurement cost. The Malaysian Smart Automation Grant (SAG) can offset HMI investment for qualifying SME manufacturers.

Matching Your HMI to the Right PLC

A human machine interface delivers its full value when paired with a compatible programmable logic controller. Same-brand integration — Siemens KTP700 with S7-1200, or Mitsubishi GOT2000 with iQ-R — provides one-click tag import, unified simulation, and simplified troubleshooting. When your production floor runs multiple PLC brands, Pro-face GP4000 panels act as a universal bridge with their extensive driver library. Browse our [PLC category](/plc/) for controllers that pair directly with the HMI panels listed here, or read the [HMI Buying Guide for Malaysia](/hmi/buying-guide-malaysia/) for detailed protocol-matching tables.

HMI Applications in Malaysian Manufacturing

Human machine interface panels serve critical roles across Malaysia’s key manufacturing sectors. Semiconductor facilities in Penang use Omron NA panels for automated test equipment, displaying pass/fail data in real time. Food and beverage plants operated by Nestle and F&N rely on Siemens Comfort Panels for recipe management and CIP (clean-in-place) monitoring. Automotive assembly lines in Johor deploy Mitsubishi GOT2000 screens for production status tracking and error alerting. With Malaysia’s NIMP 2030 pushing factories toward digitisation, HMI panels increasingly serve as the operator’s gateway to MES and cloud-connected dashboards.

Top HMI Products at Flextech Industrial

• Siemens KTP700 Basic — 7-inch PROFINET panel; the most popular HMI for Siemens PLC systems in Malaysia, priced from approximately RM 1,800.
• Mitsubishi GOT2000 GT25 (10″) — robust 10-inch panel with CC-Link and Ethernet; ideal for Mitsubishi-based packaging and process lines.
• Siemens Comfort Panel 15″ — full HD, multi-protocol (PROFINET, MPI, PROFIBUS), PDF viewer, VNC; suited to supervisory and SCADA roles.

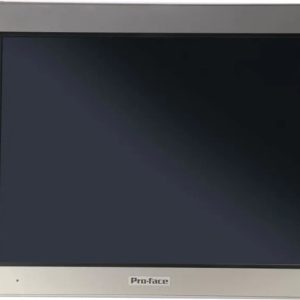

• Pro-face GP4000 (GP4300) — 100+ driver support; the go-to HMI for multi-brand PLC environments across Malaysian factories.
• Omron NA Series (12″) — combined machine controller and HMI with EtherCAT; reduces hardware by merging control and visualisation.

Frequently Asked Questions

Q: What is a human machine interface used for in factories?

A human machine interface provides operators with a graphical touch-screen display to monitor machine status, adjust parameters, acknowledge alarms, and view production data. HMI panels replace physical push buttons and indicator lights, offering more information in less panel space while reducing wiring complexity.

Q: What size HMI panel do I need?

A 7-inch HMI panel suits most single-machine applications — packaging, conveyors, small batch systems. For multi-zone monitoring or production lines with trending and alarm history, 10 to 15 inches provides adequate screen real estate. Control-room SCADA displays typically require 19 inches or larger.

Q: Which HMI brand works with any PLC?

Pro-face GP4000 panels offer the widest multi-protocol support, with over 100 built-in communication drivers covering Siemens, Mitsubishi, Omron, Allen-Bradley, and many other PLC brands. Modbus TCP also serves as a universal fallback protocol supported by virtually all HMI manufacturers.

Q: How much does an HMI panel cost in Malaysia?

HMI panel prices in Malaysia range from approximately RM 1,000 for compact economy models (Mitsubishi GT21, Omron NB3.5) to RM 20,000 for premium large-format panels (Siemens Unified Comfort 22″). The most commonly purchased 7-inch panels typically cost between RM 1,500 and RM 5,000. Contact Flextech Industrial for current pricing.

Q: Can I access my HMI panel remotely?

Yes — many modern HMI panels support VNC, web server, or cloud-based remote access. Siemens Comfort Panels include built-in VNC and web browser functionality. Remote monitoring lets engineers view live production data and troubleshoot alarms without being physically on the factory floor.
