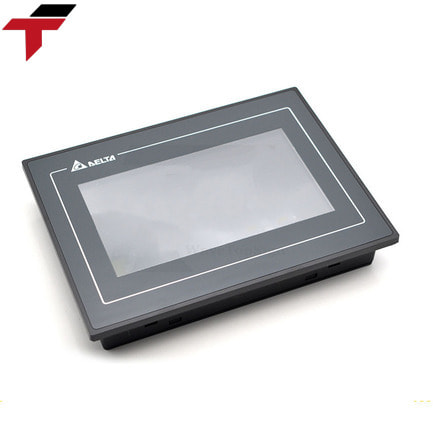

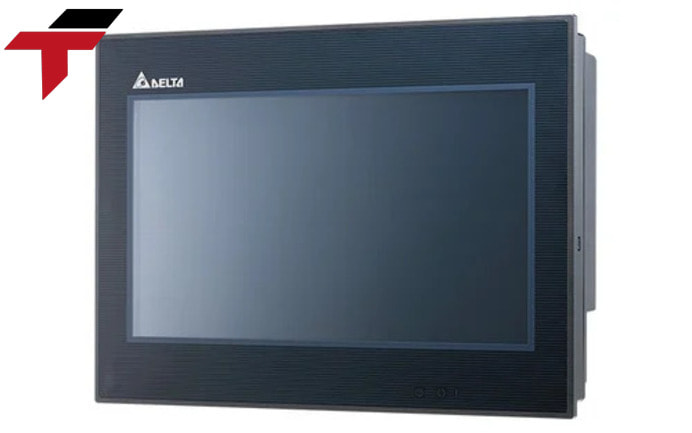

HMI DELTA DOP 107BV
With a 7-inch TFT touchscreen design, 800 x 480 pixel resolution, clearly displays the steps in the production process, helping operators easily control the device. The strength of the DOP 107VB is its ability to integrate with a variety of communication protocols such as RS232, RS485, and Ethernet.
-
Description
Delta Electronics DOP 107BV product line manufactured in 2018 is considered a Human Machine Interface (HMI) device that provides intuitive control and monitoring in industrial automation systems.
Detailed product specifications
| Specifications | Details |
| Brand | Delta Electronics |
| Model name | DOP 107BV |
| Panel type | 7 inches TFT LCD (65535 colours) |
| Resolution | 800 x 480 pixels |
| Display range | 154.08 mm * 85.92 mm |
| Brightness | 400 cd/m² (Typ.) |
| CPU | ARM Cortex-A8 (800 MHz) |
| Flash ROM | 256 Mbytes |
| RAM | 256 Mbytes |
| Touchscreen | 4-wire resistive touchscreen > 1,000,000 operated |
| USB | 1 USB Slave Ver 2.0; 1 USB Host Ver 2.0 |
| SD | N/A |
| Backup Battery | 3V lithium battery CR2032 x 1 |
| Backup Battery Life | About 3 years or more at 25°C (subject to operation temperature and condition) |
| Operation temperature | 0°C to 50°C (32°F to 122°F) |
| Dimension (WxHxD) mm | 215 x 161 x 35.5 |
| Weight | Approx. 700g |
Where is a reputable supplier of HMI DOP 107BV?
If you are looking for a top-notch automation control solution for your business, the HMI DOP 107BV is the ideal choice. To buy genuine products at the most competitive prices, contact FLEXTECH immediately – the official distributor of Delta Electronics in Malaysia.
Commitment when buying at FLEXTECH
- 100% genuine products
- Warranty up to 24 months
- Professional free consulting team 24/7
- Fast delivery nationwide within 2 hours
Please contact us via the hotline below if you have any questions about the product, we are happy to answer you!
