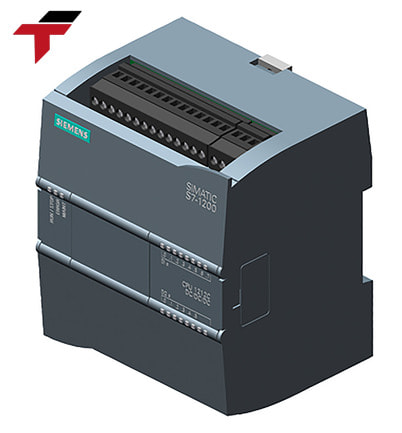

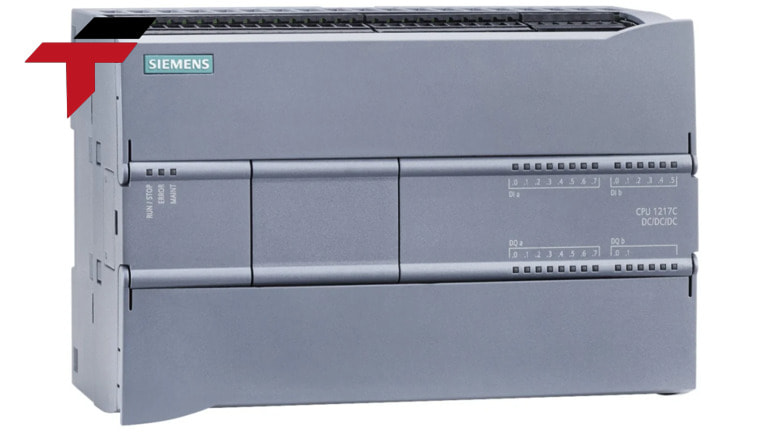

Siemens Simatic S7 1200
Siemens launched the SIMATIC S7-1200 product line in 2009 to replace the S7-200 line. Compared to the S7-200 line, the SIMATIC S7-1200 line is considered to have overcome most of the disadvantages of the S7-200.
-
Description
Overview
The SIMATIC S7-1200 controller is the smart choice for compact automation solutions with extensive input/output communication options. With integrated technologies such as high-speed counters, pulse width modulation, pulse train output, and speed control,… The SIMATIC S7-1200 controller is suitable for temperature control, and process control in packaging machines or conveyors.

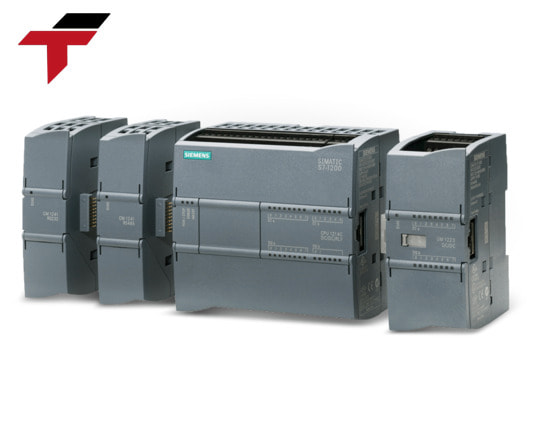

The S7-1200 PLC can expand signal and external modules to expand the CPU’s functions. In addition, additional communication modules can be installed to support other communication protocols. The Siemens Simatic S7-1200 PLC system is a powerful and flexible solution for automation and control applications in small and medium-sized industries. With multi-language programming capabilities, high security and reliable performance, the S7-1200 has proven to be reliable and effective in optimizing production processes.
Market prices vary from $500 – $1000, depending on the model and the number of inputs/outputs.
Detailed product specifications
| Specifications | Details |
| Model name/number | 6ES7212-1AE40-0XB0 |
| Brand | Siemens |
| Product line | SIMATIC S7-1200 |
| Memory size | 75KB |
| Dimension | 100x90x75mm (LxWxH) |
| Integrated technology | HSC, PTO/PWM and Motion control. |
| Supply voltage | 85V – 264V |
| Programming language | FBD, LAD, SCL, SFC, IL |
| Network communication protocol | Ethernet, Profinet, UDP, Modbus RTU |
| Number of inputs/outputs | The number of inputs/outputs can be from 8 to 512 points. |
| Memory Card | Allows memory cards to be attached to increase load memory area capacity. Maximum 32Gbyte. |
| Processor | Cortex-M3 |
| Security | Protect PLC program download/upload with Password.
Protect OB, DB, FC, FB function blocks in the program from being accessed or adjusted with a Password. |
| Maximum temperature | +60°C |
| Minimum temperature | -20°C |
Where is a reputable supplier of Siemens Simatic S7 1200?
If you are looking for a top-notch automation control solution for your business, the Siemens Simatic S7 1200 is the ideal choice. To buy genuine products at the most competitive prices, contact FLEXTECH immediately – the official distributor of Delta Electronics in Malaysia.
Commitment when buying at FLEXTECH
- 100% genuine products
- Warranty up to 24 months
- Professional free consulting team 24/7
- Fast delivery nationwide within 2 hours
Please contact us via the hotline below if you have any questions about the product, we are happy to answer you!
